To protect your assets and your maintenance budgets, you need objective data to pinpoint the exact location and cause of ingress.
This is where moisture mapping comes in.
What is [moisture mapping](https://www.jag-ps.co.uk/water-damage-restoration-service)?
It's a rigorous scientific process that uses electronic moisture meters to take multiple readings across a room’s walls, floors and ceilings, helping to understand, locate and track hidden moisture issues so repairs are targeted, effective and complete.
## **What is Moisture Mapping?**
Moisture mapping goes beyond traditional visual inspections. It is a forensic diagnostic technique used to identify, measure, and document the exact distribution of moisture within a building's fabric.
Moisture does not simply stay where it lands. It travels unpredictably through capillary action, wicking up porous masonry like brickwork, tracking along structural floor joists, and pooling in hidden wall cavities.
Moisture mapping creates a precise, quantifiable profile of this hidden moisture.
By taking systematic readings across affected areas, an independent surveyor plots the exact boundary between wet and dry materials. This data is then translated into a detailed report or visual map, completely removing human assumption from the diagnostic process.
## **How Moisture Mapping Works?**
A professional assessment relies on a combination of advanced diagnostic technology and building physics expertise. An independent investigator does not just press a meter against a [damp patch](https://www.jag-ps.co.uk/news/modern-home-dampness-in-new-properties) and make a guess. They use a structured, grid-based approach to trace the moisture back to its true source.
The process typically begins with thermal imaging.
Infrared cameras do not see moisture directly, but they detect the subtle temperature differences caused by moisture evaporation. This highlights hidden cold anomalies behind plaster or under floors, directing the surveyor to the areas requiring closer inspection.

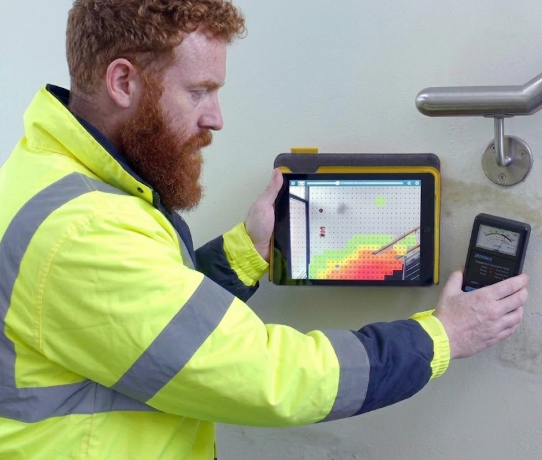

Following this, the surveyor uses non-destructive electronic moisture meters to take precise readings across the identified zones. By scanning the surface and subsurface materials at regular intervals, they track the moisture's exact path. If necessary, they will use precision hygrometers to measure the relative humidity within the wall cavities themselves.
This methodical approach ensures that every single pocket of moisture is located and documented accurately.
## **The Importance of a Moisture Mapping Survey**
Visual inspections consistently fail because human eyes cannot see behind solid masonry or beneath floorboards. Relying on a quick look from a general contractor can potentially result in severe misdiagnosis.
A forensic moisture mapping survey provides the necessary data required to make sound financial and structural decisions.
When you instruct a drying contractor without a detailed map, they are free to dictate their own scope of work. A less scrupulous contractor may install excessive drying equipment and strip out unaffected materials, rapidly inflating the repair bill.
Alternatively, less experienced service providers may miss a hidden pocket of moisture entirely.
If saturated materials are left behind, the trapped water will inevitably lead to aggressive dry rot or widespread mould proliferation. A detailed map provides a strict, independent specification, holding contractors accountable and preventing unnecessary structural demolition.
## **When is Moisture Mapping Needed?**
There are several specific scenarios where this level of forensic investigation is absolutely mandatory to protect the structural integrity of a building.
The most common application occurs during the immediate aftermath of a plumbing failure, severe weather event, or burst pipe. Moisture mapping water damage ensures that the subsequent drying regime targets the exact areas affected by the flood.
It defines the parameters of the damage so you know exactly which materials require extraction and which can be saved.
This process is also crucial when dealing with persistent, unexplained [dampness](https://www.jag-ps.co.uk/news/modern-home-dampness-in-new-properties). If a property suffers from returning mould or ongoing moisture issues despite previous repairs, mapping the moisture helps identify the true root cause, whether it is a subtle penetrating leak or a complex environmental condensation issue.
Finally, mapping is an essential part of post-remediation verification. Before you sign off on a contractor's final invoice and begin cosmetic redecoration, an independent surveyor maps the area again. This proves beyond any doubt that the building is genuinely dry and safe for occupants to return.
## **Linking Diagnostics to Effective Repair**
The ultimate goal of gathering this scientific data is to facilitate effective, permanent repairs. Whether you are dealing with a slow, hidden leak or catastrophic flooding, having a clear understanding of the moisture's spread allows you to implement a targeted Water Restoration Programme.
Because an independent consultancy does not sell physical drying services, you can trust that their [moisture mapping](https://www.jag-ps.co.uk/water-damage-restoration-service) services are entirely objective. They have no financial incentive to exaggerate the scale of the problem.
Managing complex moisture problems requires scientific rigour and total objectivity. Relying on guesswork leaves your property assets vulnerable to severe biological decay and inflated contractor bills.
If you are dealing with a water ingress issue and need to establish the exact scope of the damage, [contact us today](https://www.jag-ps.co.uk/request-a-survey?hsCtaAttrib=401945745608) to schedule an independent, forensic assessment.
